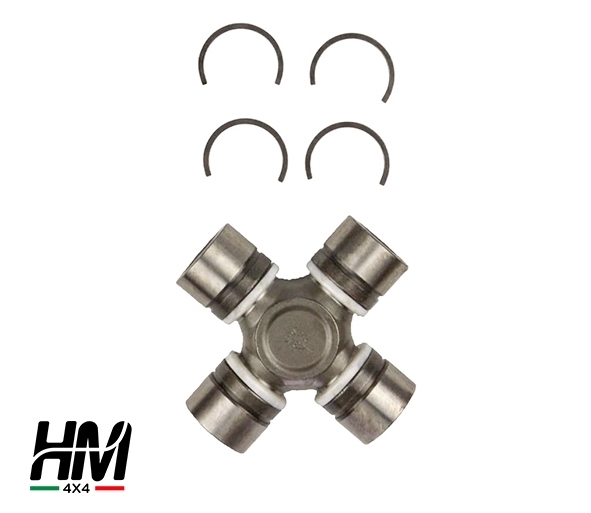

5-7166X Axle Shaft Universal Joint

€85.00
Add to cart

Non-greasable Dana Spicer HD universal joint for Dana Super 30 axle shaft, 1350 series, for Jeep Wrangler Jk from 2007 to 2015.

Spicer Drivetrain Products light-duty U-joints feature journal crosses that are manufactured from high-quality alloy forgings and heat-treated for maximum life. The bearing cups are case-hardened for strength and durability, while the seals are crafted from nitrile rubber for optimum grease retention and contaminant exclusion. Ample grease reservoirs in each trunnion assure effective lubrication; they're pre-filled with high-quality synthetic lithium grease, providing superior friction-reduction and resistance to higher temperatures.

Specification:

  • non greaseable
  • bearing cap diameter (1) 1.188
  • bearing cap diameter (2) 1.188
  • snap ring (1) 2,406
  • snap ring (2) 2,406
  • bearing cap type round
  • snap ring type internal
  • snap ring included
  • length A (In) 2.406
  • length B (In) 2.406
  • bearing cap type A ISR
  • bearing cap type B ISR
  • bearing cap diameter A (mm) 1.188
  • bearing cap diameter B (mm) 1.188
