Jeep Gladiator Springs
Synergy Jeep Gladiator JT Rear Coil Springs +5" Pair.

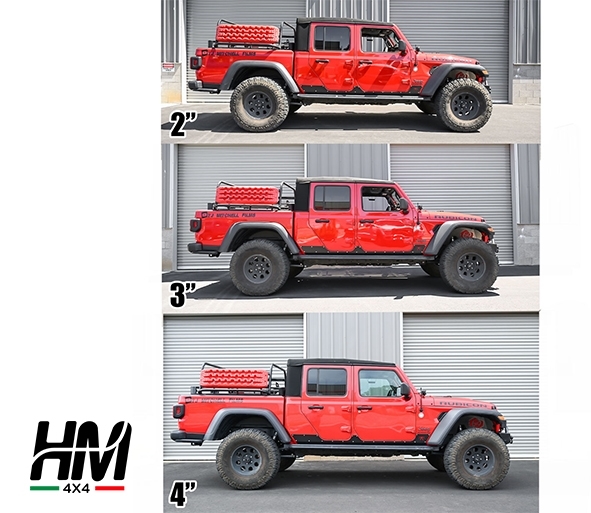

Lift Chart for Jeep JT Models*:
- Jeep Gladiator Sport 5"
- Jeep Gladiator Rubicon 5"
- Jeep Gladiator Rubicon Diesel 3"
- Jeep Gladiator Non-Rubicon Diesel 4"
- Jeep Gladiator JT Mojave 3"
*Lift heights are based on fully loaded Rubicon 3.6L models with HD front and rear bumpers and winch.
This measurement is higher than the stock height for that particular model.

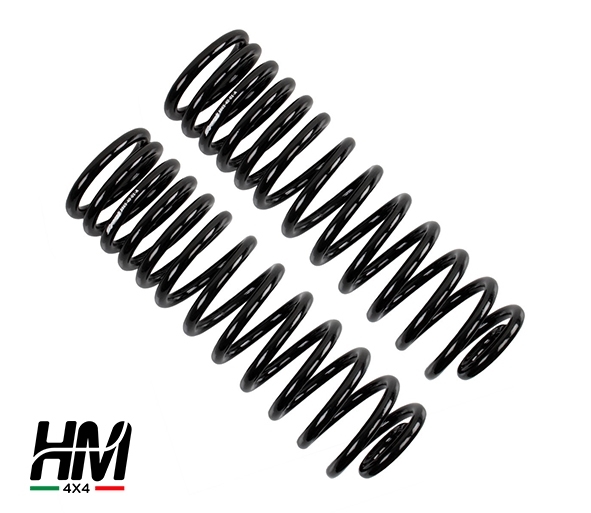

Synergy Jeep JT Multi-Rate Lift Rear Coil Springs. These springs are unique to the JT. The multi-rate (variable pitch) design has a soft initial rate that prevents the spring from loosening, even with long travel shocks; while the travel rate is the average of the original spring rates to maintain proper payload and towing capacity. Springs are made in the USA from the highest quality steel.
Specifications:
- lift +5" / 12.7 cm
- spring rate (initial/travel) 165/250 lb/in
- collapsed length 9.5"/24.13 cm
- min. extended length 23.375"/59.37 cm
- minimum bump stop distance 2"/5 cm
Benefits:
- Increased ride quality
- Increased wheel travel/articulation/traction
- No spring bowing
Features:
Multi-Rate coil springs allow for longer spring lengths and increased travel
Spring rates are similar to stock to maintain payload and towing capacity
Coil spring block heights designed around common bump stop spacings to optimize wheel travel
Frequency balanced and tuned spring rates to maximize suspension performance on and off road
Abrasion-resistant black powder coat finish for maximum durability and corrosion resistance
Notes:
Coil springs require proper bump stop spacing.
Lift heights are based off fully loaded Rubicon 3.6L models. Other models will see more lift.
Coil springs retain the stock rake of the vehicle.
For a level ride JT Gladiators need a 1 or 2 inch taller spring in the front compared to the rear depending on model.
Up to .75 inch of front coil spring spacer can be added to help level the vehicle.
Do not use less bump stop spacing.
