5-760X Axle shaft universal joint

Add to cart

Non-greasable Dana Spicer HD universal joint for Dana 44 front axle shaft for:


  • Jeep grand Cherokee ZJ 1994/1998
  • Jeep Cherokee XJ 1995/1998
  • Jeep Cherokee XJ with automatic transmission 1999/2001
  • Jeep Wrangler TJ 1999/2002
  • Jeep Wrangler TJ 2003/2006 except Rubicon
  • Jeep Wrangler Jk non Rubicon o Jk unlimited 2007/2017.


Spicer Drivetrain Products light-duty U-joints feature journal crosses that are manufactured from high-quality alloy forgings and heat-treated for maximum life. The bearing cups are case-hardened for strength and durability, while the seals are crafted from nitrile rubber for optimum grease retention and contaminant exclusion. Ample grease reservoirs in each trunnion assure effective lubrication; they're pre-filled with high-quality synthetic lithium grease, providing superior friction-reduction and resistance to higher temperatures.


  • non greaseable
  • type ISR Style
  • OEM Series 1310WJ
  • bearing cap diameter (1) 1.188
  • bearing cap diameter (2) 1.188
  • snap ring (1) 2.188
  • snap ring (2) 2.188
  • bearing cap type round
  • snap ring type internal
  • snap ring included Y
  • bearing cap finish ground
  • seal material rubber
  • seal color/finish black
  • coating type none
  • pre greased Y
  • grease type N.L.G.I. Grade 2
  • length A (In) 2.188
  • length B (In) 2.188
  • length A (mm) 55.6
  • length B (mm) 55.6
  • bearing cap type A ISR
  • bearing cap type B ISR
  • bearing cap diameter A (mm) 1.188
  • bearing cap diameter B (mm) 1.188

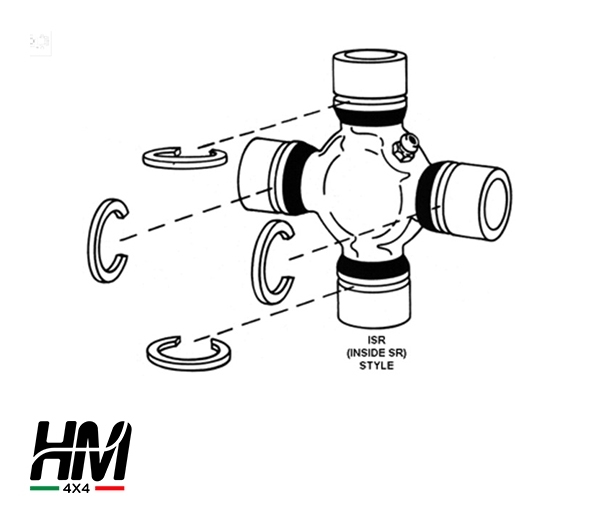

To be sure to buy the right spare part, help yourself with the above measurements and with the graphs in the photo.
