Front axle assembly fit Jeep Wrangler Tj Rubicon - Dana Spicer original

€235.00
  • Select fitment side:
Add to cart

Front axle assembly for Dana 44 fit Jeep Wrangler Tj Rubicon, 2003-2006.

The original Dana Spicer axle shafts are manufactured to the same high standards as OEM components (OE), or sometimes exceed them, as the result of continuous research and design.

Specification:

  • brand Spicer
  • axle model DANA 44
  • material steel
  • ABS: non-ABS
  • spline count 30 inboard/27 outboard
  • cover bolt quantity 10
  • full-floating or semi-floating: semi-floating

From the drop-down menu choose the installation side.

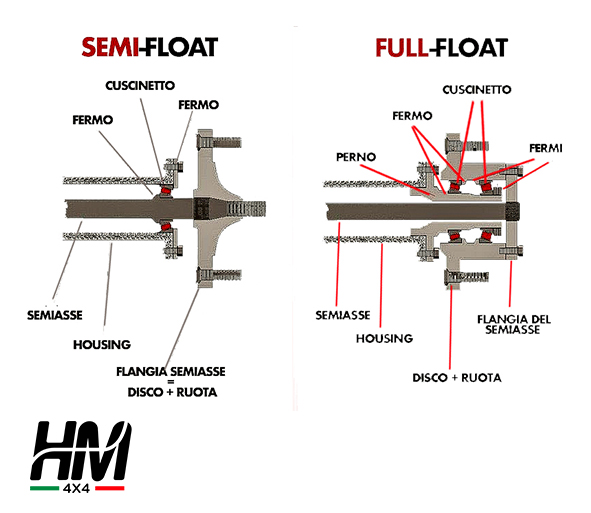

In a semi-float design, the axle shaft in addition to being responsible for the transmission is constrained to the wheel, carries the weight of the vehicle and suffers by definition more stress.
As can be seen from the image, in the semi-float the axle shaft flange acts as an attachment for the wheel, as well as transmitting, while in the Full-Float the axle shaft does not carry weight but only transmits; this is thanks to the hub which is made up of a system of double bearings which keep the axle shaft in place on the wheel side and on which all stresses not related to the transmission are discharged.
